![ROSS EUROPA Inline Solenoid Poppet Valve [16 Series], G1/4 3/2 WEGE MAGNETVENTIL N.G. DIREKTBETÄTIGT PAC 24VDC; D1613C2322W](https://www.ep-solutions.rs/uploads/prodimgs/b/ross-europa-inline-solenoid-poppet-valve-16-series-g14-32-wege-magnetventil-ng-direktbetatigt-pac-24vdc-d1613c2322w.png "ROSS EUROPA Inline Solenoid Poppet Valve [16 Series], G1/4 3/2 WEGE MAGNETVENTIL N.G. DIREKTBETÄTIGT PAC 24VDC; D1613C2322W")

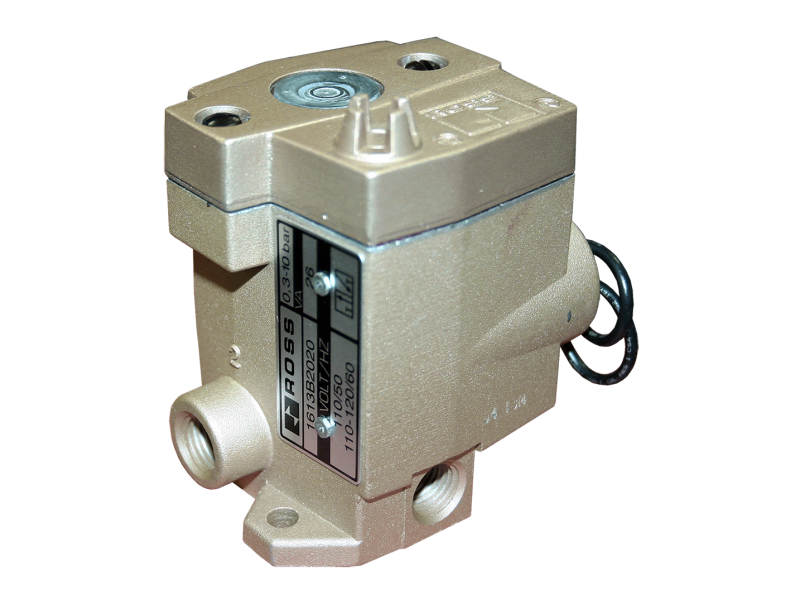

ROSS EUROPA Inline Solenoid Poppet Valve [16 Series], G1/4 3/2 WEGE MAGNETVENTIL N.G. DIREKTBETÄTIGT PAC 24VDC; D1613C2322W
G1/4 3/2 WEGE MAGNETVENTIL N.G. DIREKTBETÄTIGT PAC 24VDC weight: 1,1000 kg / 1,1000 kg commodity code: 84812090 country of origin: US 16 Series, 3/2-Way, Single...
Price on request
G1/4 3/2 WEGE MAGNETVENTIL N.G. DIREKTBETÄTIGT PAC 24VDC weight: 1,1000 kg / 1,1000 kg commodity code: 84812090 country of origin: US
16 Series, 3/2-Way, Single Solenoid Valve, Normally Closed, Port (In) G1/4", Port (Out) G1/4", 24 VDC
16 Series, 3/2-Way, Single Solenoid Valve, Normally Closed, Port (In) G1/4", Port (Out) G1/4", 24 VDC
- Poppet construction for near zero leakage & high dirt tolerance
- Self-cleaning
- Wear compensating
- Repeatability throughout the life of the valve
- 3-way 2-position Normally Closed or Normally Open, and 4-way 2-position valves
- Inline or manifold mounting
| Valve Type | Directional Control |
| Series | 16 |
| Application | General |
| Actuation | Electrical |
| Function | 3/2 Single Solenoid |
| Default Position | Normally Closed |
| Return | Spring |
| Thread Type | G |
| Inlet Pipe Size | 1/4" |
| Outlet Pipe Size | 1/4" |
| Construction | Poppet |
| Mounting | Manifold Base |
| Connection | Hardwired |
| Manual Override | Non-locking |
| Avg Cv | 0.3 |
| Voltage | 24 VDC |
| Duty Rating | Continuous Duty |
| Power Consumption | 14 watts |
| Ambient Temperature | 40 to 120 F (4 to 50 C) |
| Ambient Temperature (Celcius) | 4 to 50 |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature (Celcius) | 4 to 80 |
| Fluid Media | Filtered air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Operating Pressure (bar) | 0.3 to 10 |
| Length | 2.58 in (66 mm) |
| Length (mm) | 66 |
| Width | 2.75 in (70 mm) |
| Width (mm) | 70 |
| Height | 4.73 in (120 mm) |
| Height (mm) | 120 |
| Weight | 2.4 lb (1.1 kg) |
| Weight (kg) | 1.1 |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Acetal |
| Seal Material | Buna-N |
-
Directional Control Compact Valves 16 Series ROSS-Compact-16 EN
